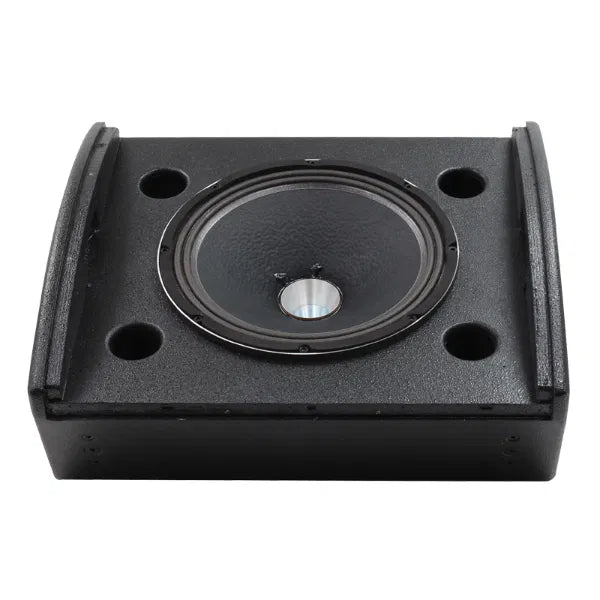

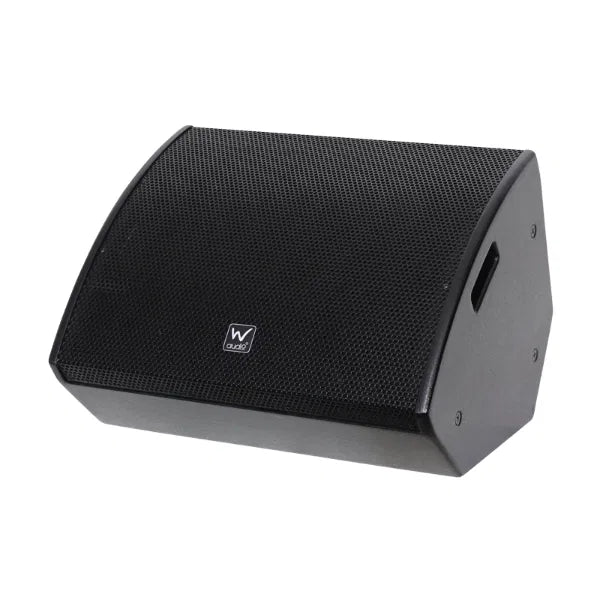

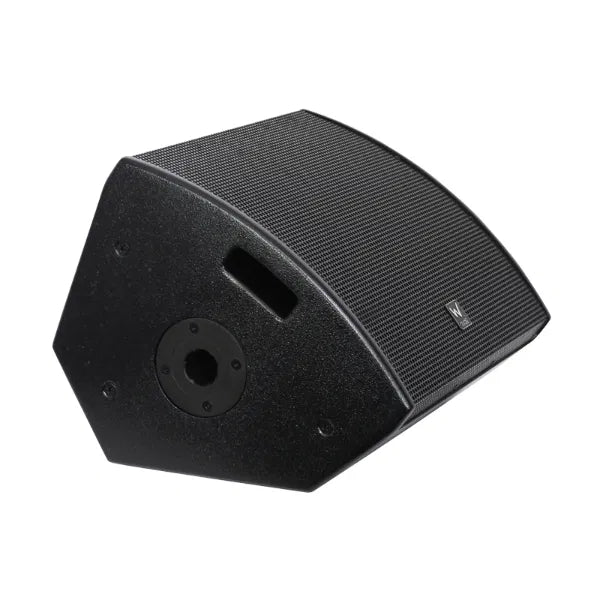

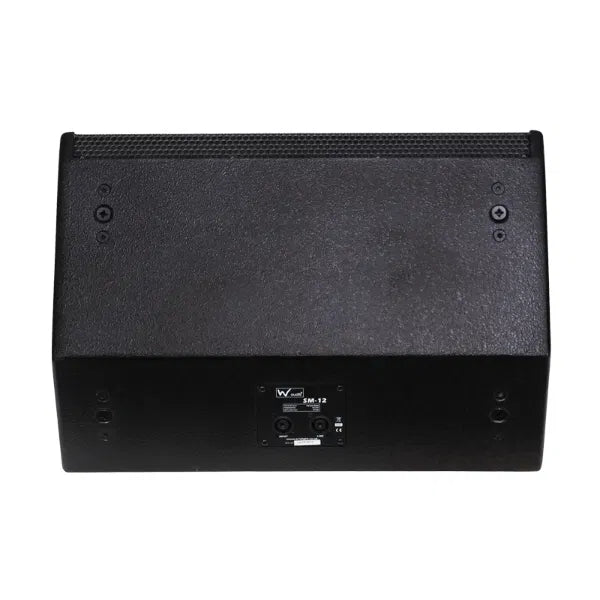

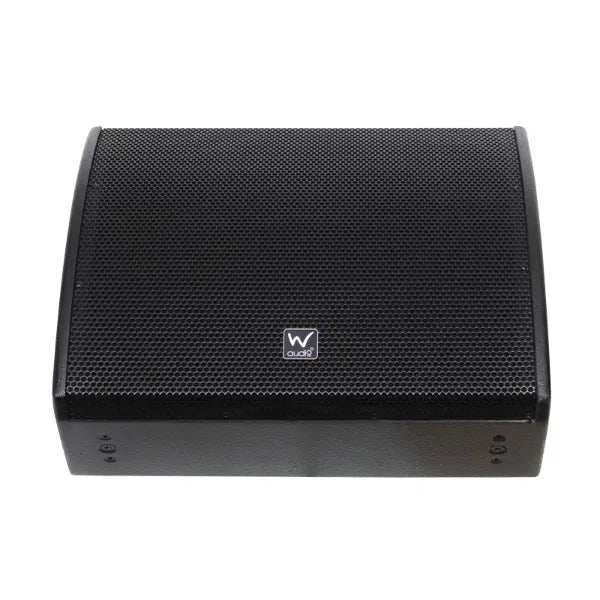

The W Audio SM Passive Series are stage monitor loudspeakers designed to meet precise requirements in professional applications. The wide frequency response enables accurate reproduction of both vocals and instruments with a high gain before feedback, and provides excellent intelligibility at high output levels with low distortion and without colouration. The loudspeakers coaxially mounted high-frequency section, comprises of a diaphragm compression driver coupled to a constant directivity horn. The SM Series far exceeds the capabilities of conventional stage monitors while reproducing a uniform polar pattern both on and off axis helping reduce feedback. These low profile, robust birch ply cabinets with a durable, hard-wearing finish are suitable for both touring and installation.
Continuous power (RMS): 250W
Peak power: 1000W
Coaxial speaker reduces feedback
Maximum calculated SPL: 124dB
Sensitivity (1W/1m): 97dB
Frequency range (-10dB): 60Hz - 20kHz
Frequency range (-3dB): 70Hz - 20kHz
Crossover frequency: 2.8kHz
Horizontal coverage: 80°
Vertical coverage: 80°
LF transducer: 12"
HF transducer: 1"
Nominal impedance: 8Ω

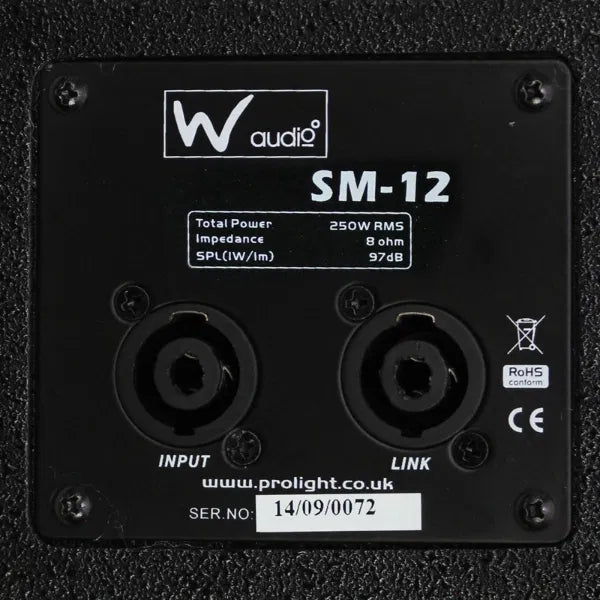

Connections: 2 x speakON connectors

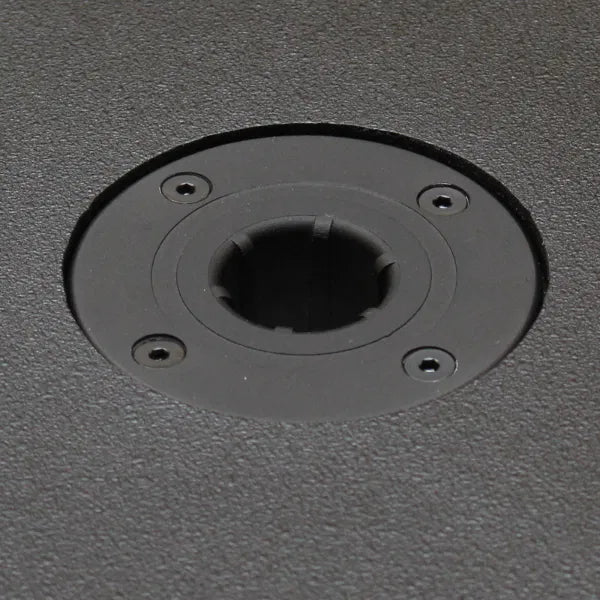

Mounting options: 35mm top hat for pole mounting and multiple 10mm rigging points
