DQM 800H Quad Handheld UHF Radio Microphone System (823Mhz-865Mhz)

DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full width receiver for the ultimate in RF stability. They have a tuning bandwidth up to 9Mhz+2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz license-free CH70 bands. These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.

• UHF band, Phase Lock Loop (PLL) offering stable RF transmission
• Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
• OLED display offers a wide viewing angle while remaining bright in darkened conditions
• Frequency, Channel, RF and AF signal strength meters
• Combined use jog wheel button operation for fast menu navigation
• 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
• Integrated antenna splitter for reduced RF interference

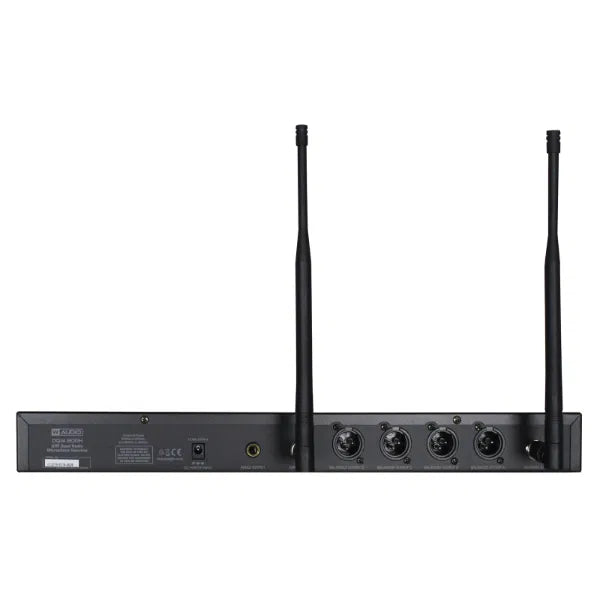

• Balanced XLR output for each channel plus unbalanced mixed output
• Automatic frequency SCAN function
• IR infrared frequency synchronisation via infrared interface
• Mute circuitry for reduced noise
• Flat frequency response: 50Hz-16KHz
• Dynamic, cardioid handheld microphone capsule

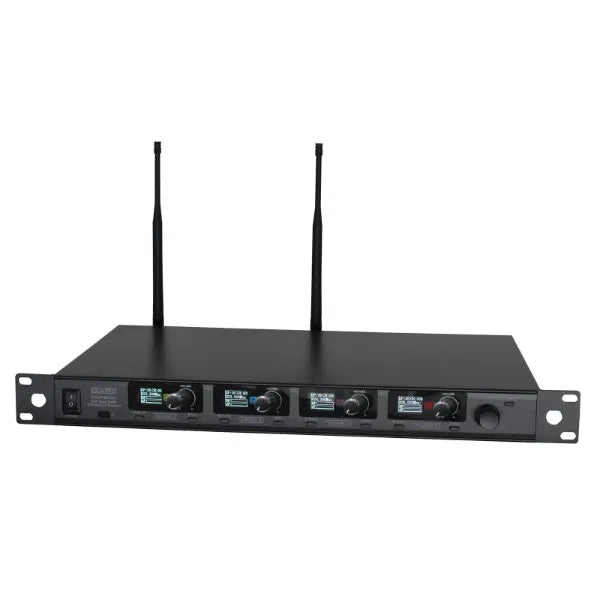

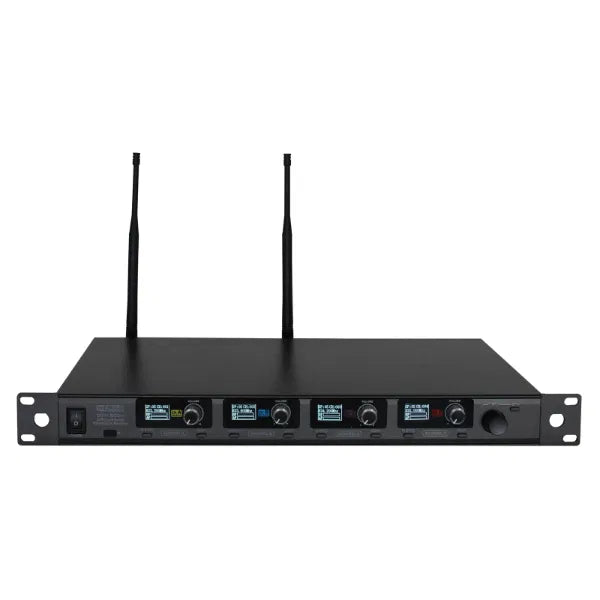

• 1U full width rack mount receiver
• Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
• Audio output level: 400mV
• Dynamic range: 96dB
• Receiver specifications:
• Power supply: 14V DC (mains adaptor supplied)
• Dimensions (H x W x D): 45 x 482 x 260mm
• Weight: 2.3kg

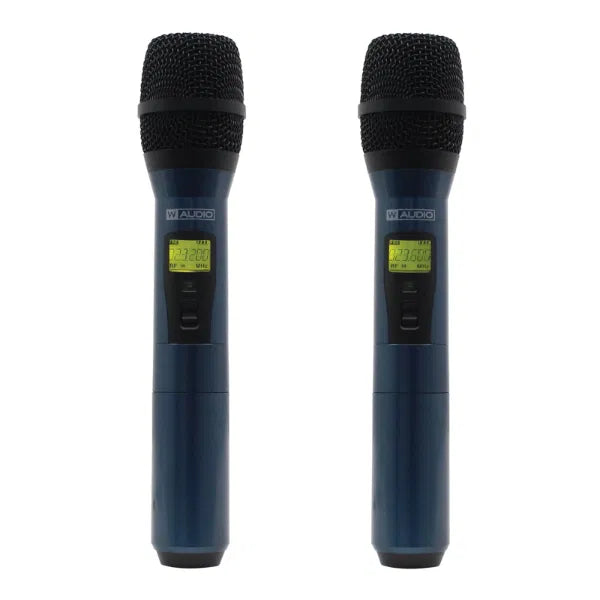

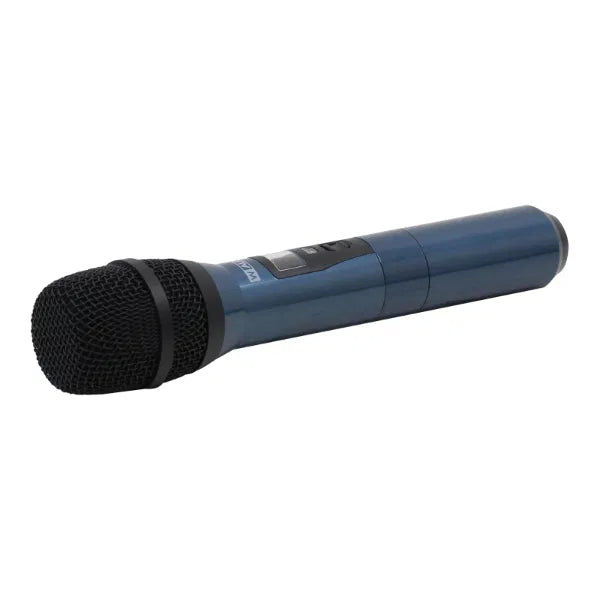

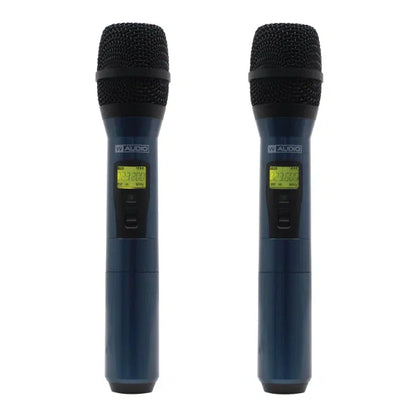

• Handheld Transmitter:
• Battery configuration: 2 x 1.5V AA (not supplied)
• Dimensions (H x W x D): 250 x 45 x 45mm
• Weight: 0.4kg

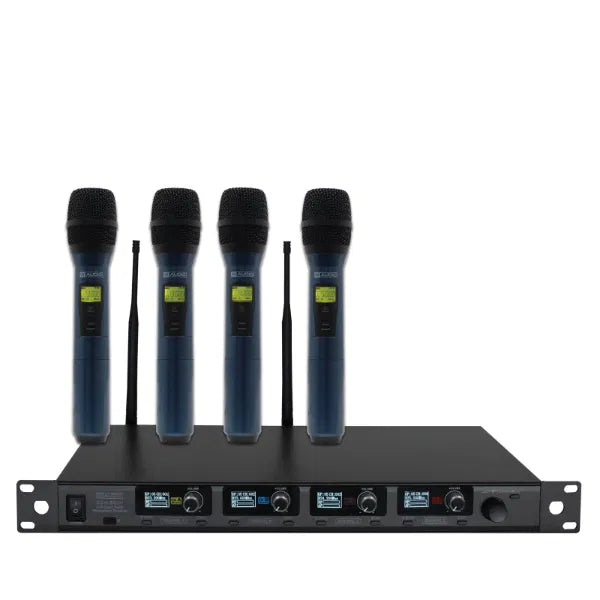

• Included in the system: 1 x receiver, 2 x removable antenna, 2 x antenna extension cables, 4 x handheld transmitters and 1 x 14V 1.2A mains PSU
