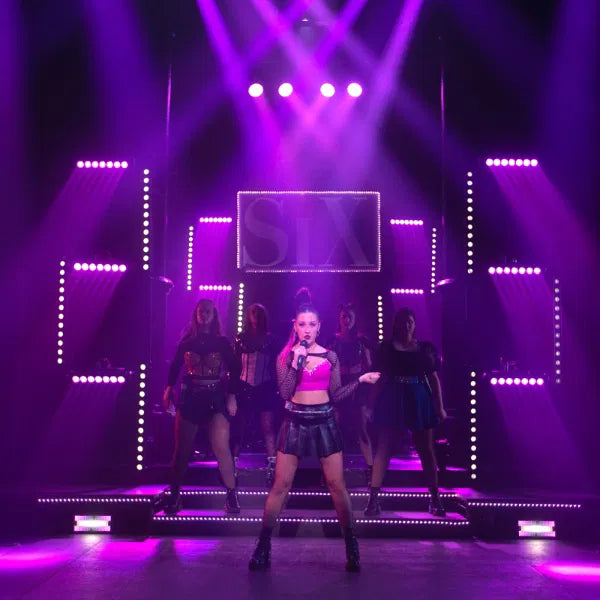

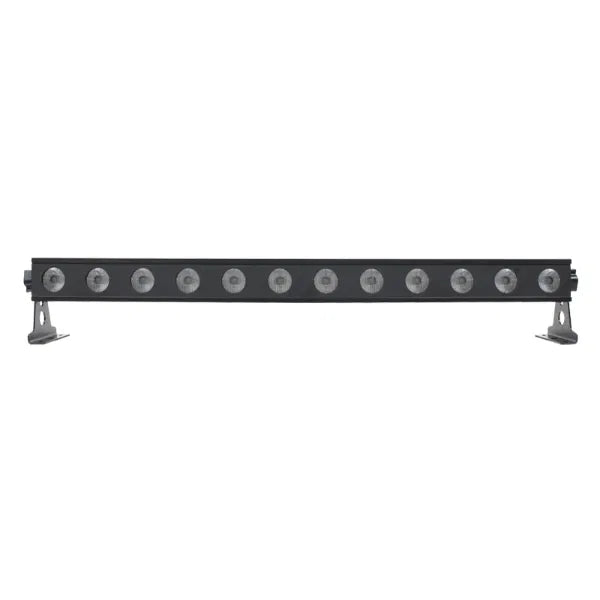

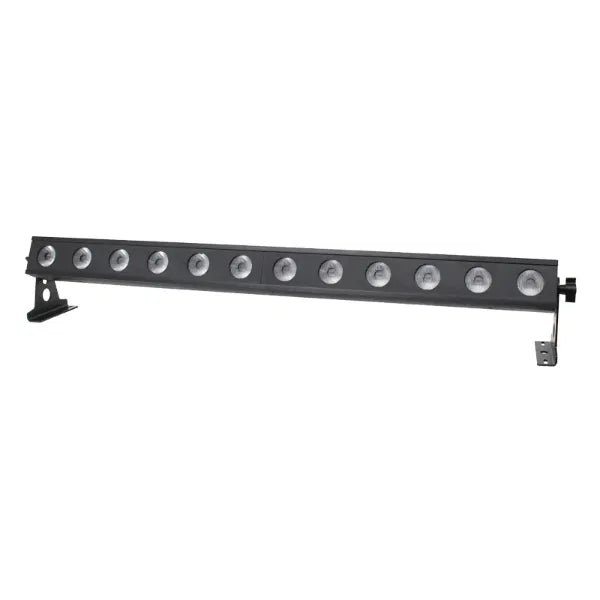

The Pixel Storm 12 MKII is an individually pixel mappable batten featuring 12 x 15W quad-colour LEDs. With a 10° x 45° beam angle and smooth colour mixing, along with built-in colour macros, it is superb for wall washing due to its ellipsoidal beam angle. The 4 button LED menu allows selection of the built-in programs, RGBW colour mixing or multiple DMX channel modes. The 3kHz refresh rate and temperature controlled fan speed make this batten also suitable for stage and theatre applications.

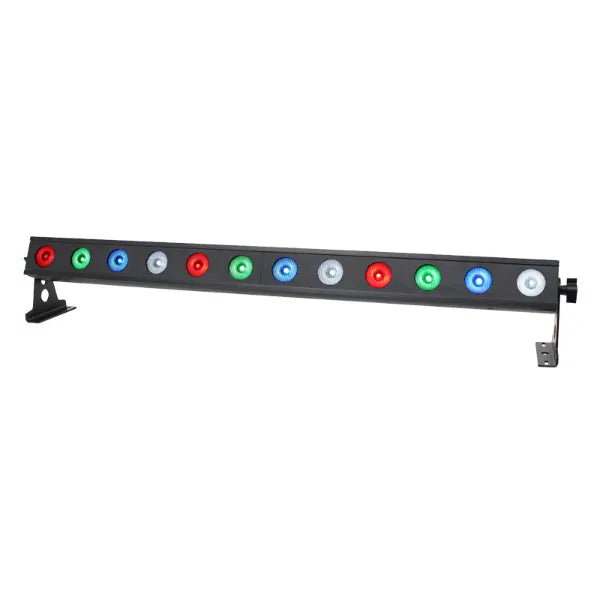

12 x 15W quad-colour LEDs (RGBW)
Beam angle: 10° x 45°
3,851 Lux @ 2m (full on)
Refresh rate: 3kHz
Pixel mapping capabilities
DMX channels: 3/4/6/10/48 or 54 selectable
Static colour, colour mix, colour change, colour fade, sound active and master/slave modes plus built-in programs
0 - 100% dimming
Variable strobe
End brackets and central bracket allow for multiple rigging and floor standing applications

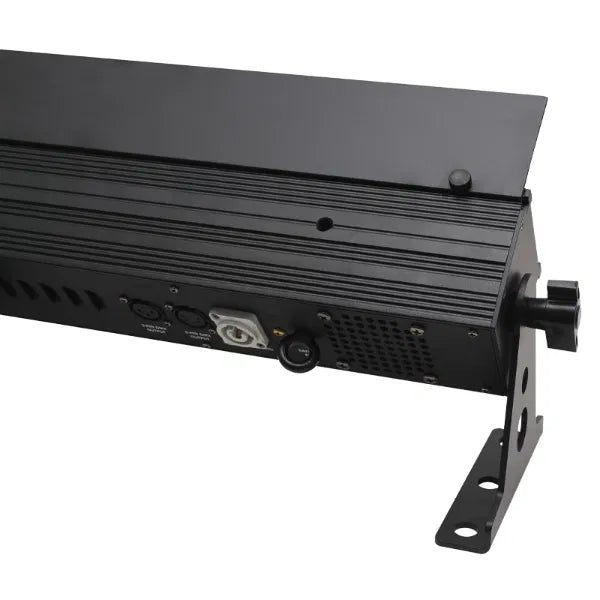

Eyebrow supplied to reduce glare and hide the LEDs when uplighting
4 push button menu with LCD display

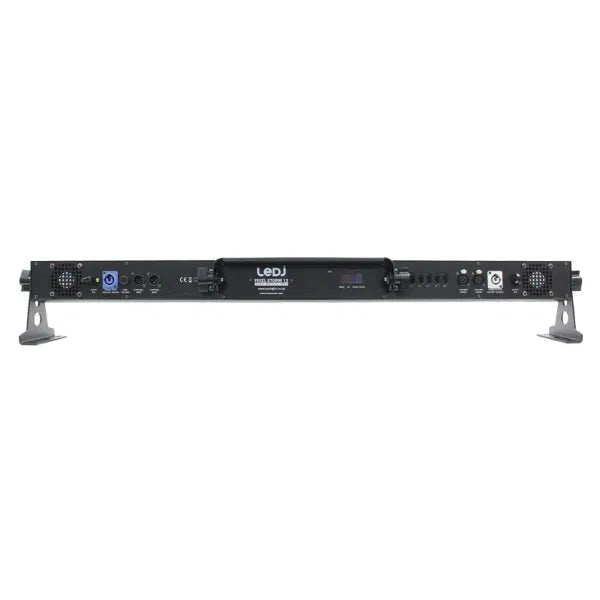

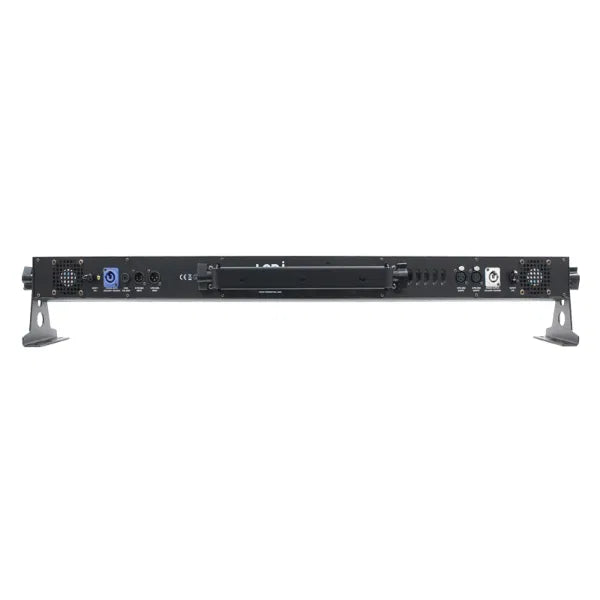

powerCON input/output
3-Pin XLR input/output
5-Pin XLR input/output
Temperature controlled fan for whisper quiet operation
