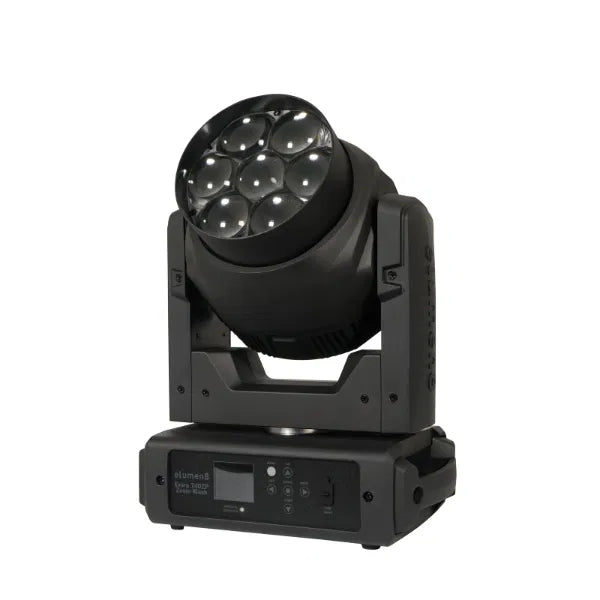

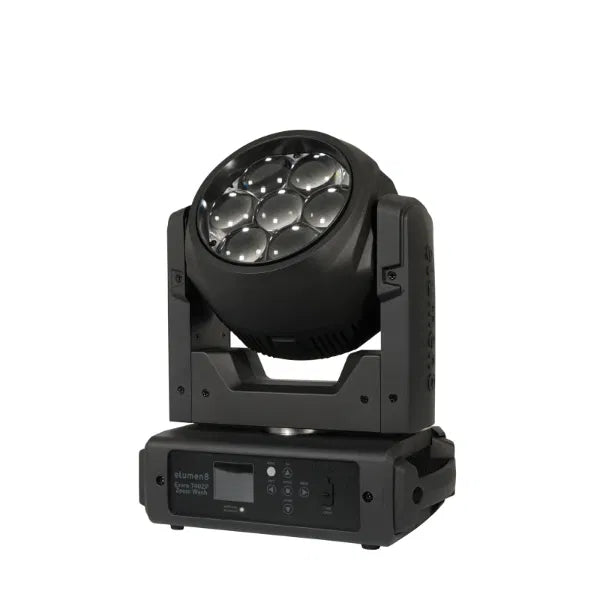

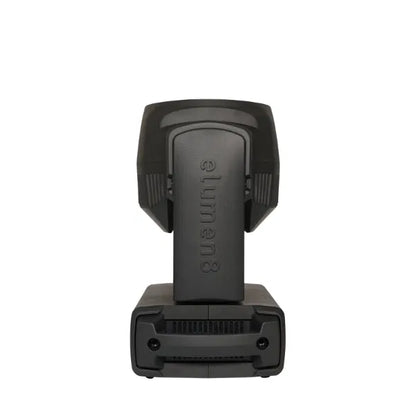

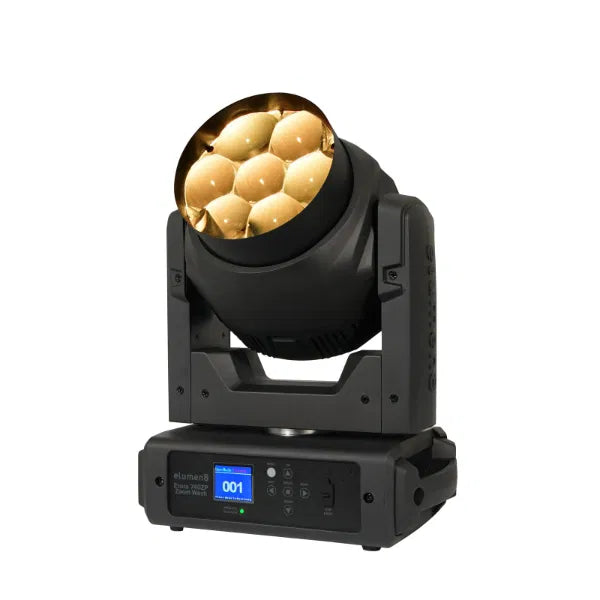

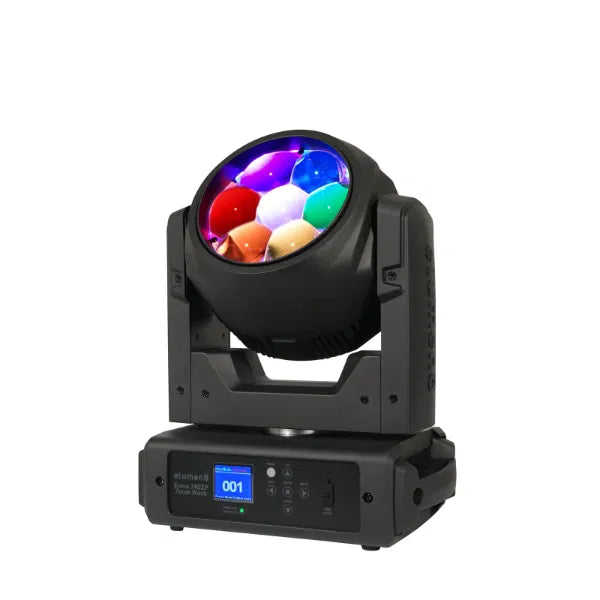

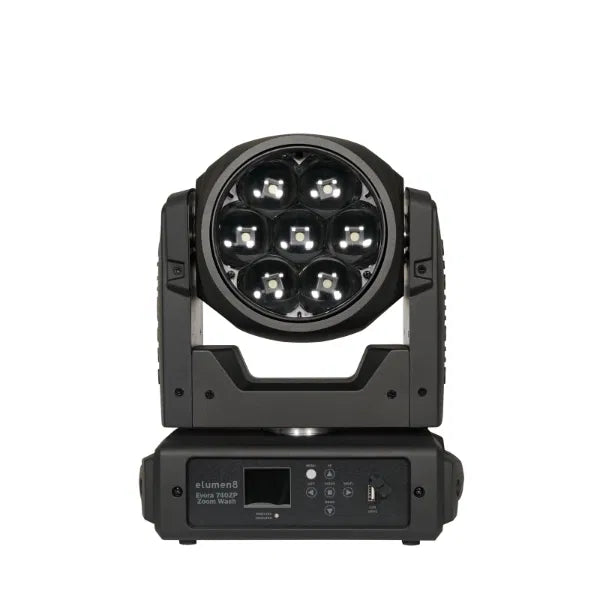

Evora 740ZP Zoom Wash

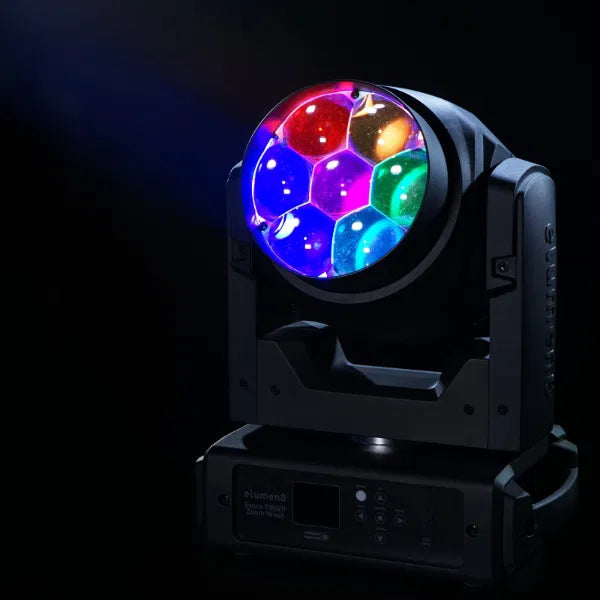

The Evora 740ZP LED Zoom Wash produces an incredible high output from a very compact and durable chassis, making it an incredibly versatile yet affordable solution for both rental and installation applications. The first-class optical system presents a high intensity adjustable zoom; the narrow 4 degree beam angle creates sharp mid-air effects, whilst the wider angles produce uniform colour mixing, bathing concerts and events in rich colours. Full pixel control over the 7 x 40W Osram Ostar™ quad-colour LEDs gives lighting designers a further level of creativity, whilst colour calibration ensures colours match from batch to batch.

• 2 year warranty
• 7 x 40W Osram Ostar™ quad-colour LEDs (RGBW)
• Adjustable beam angle: 4°- 54°
• Lumens – Source: 7,322
• Lumens – Output: 3,950
• 4° - 81,040 Lux @ 2m (full on), 54° - 2,504 Lux @ 2m (full on)
• CRI: 83
• Refresh rate: 14 selectable presets between 900Hz-25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Control protocols: DMX, Kling-net, Art-net and sACN
• DMX channels: 9/14/21/25/50 or 56 selectable
• Wireless control (W-DMX Sweden transceiver)
• Features integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
• Auto, manual control and master/slave modes
• Built-in colour macros and patterns
• Colour temperature presets
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540° or 630° selectable, Tilt: 265°
• 0 - 100% dimming
• 5 dimming modes: Standard, stage, TV, architectural and theatre
• Variable strobe

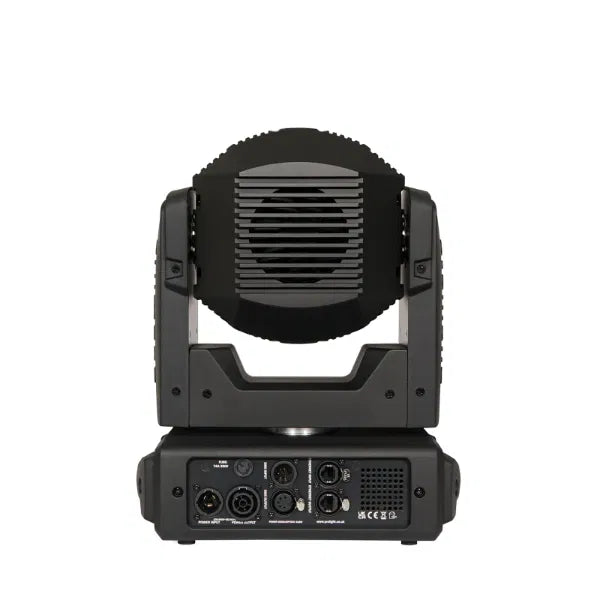

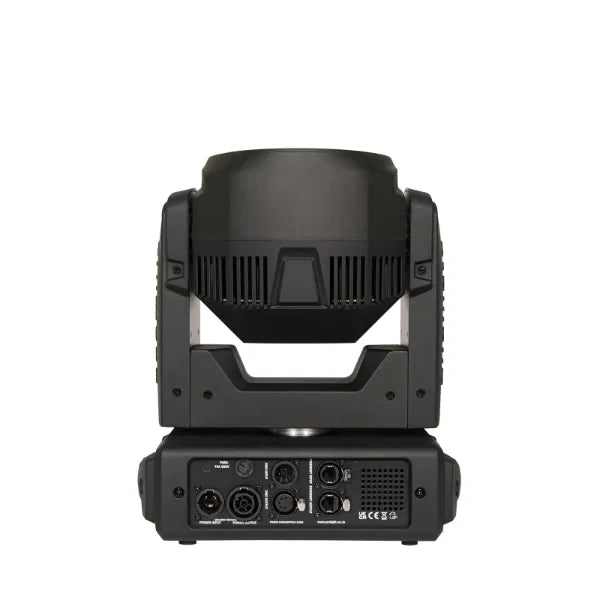

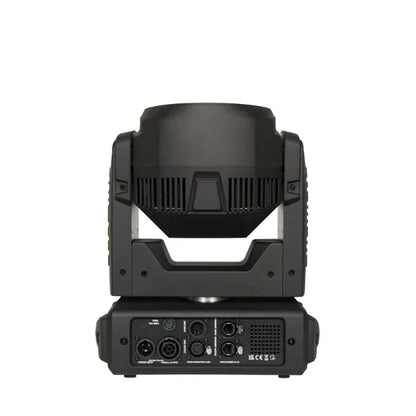

• powerCON TRUE1, 5-Pin XLR and etherCON inputs/outputs
• RDM (Remote Device Management)

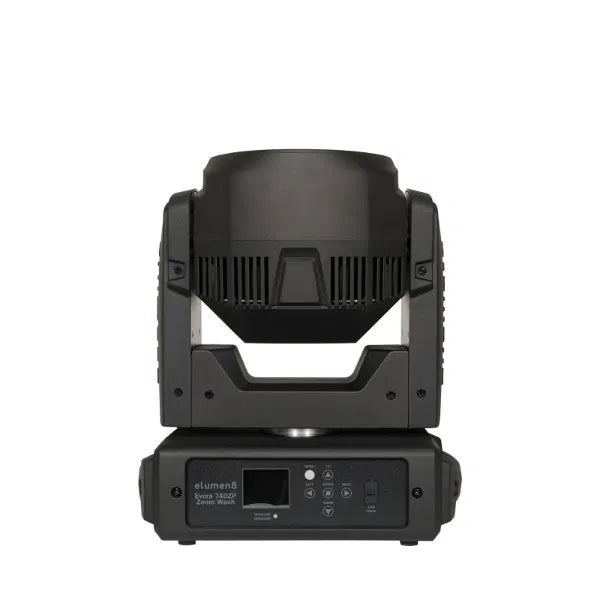

• 6 button menu with 1.8” LCD display
• Display battery backup for offline configuration

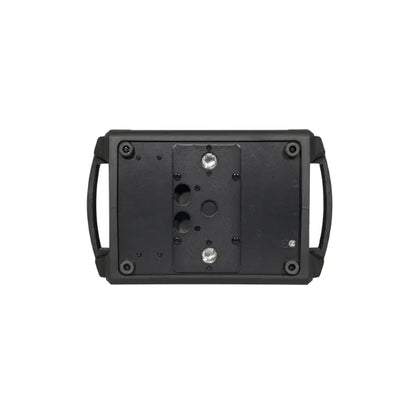

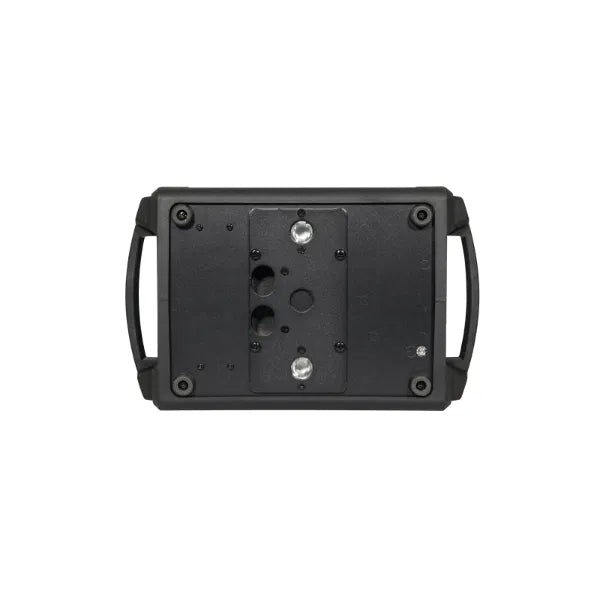

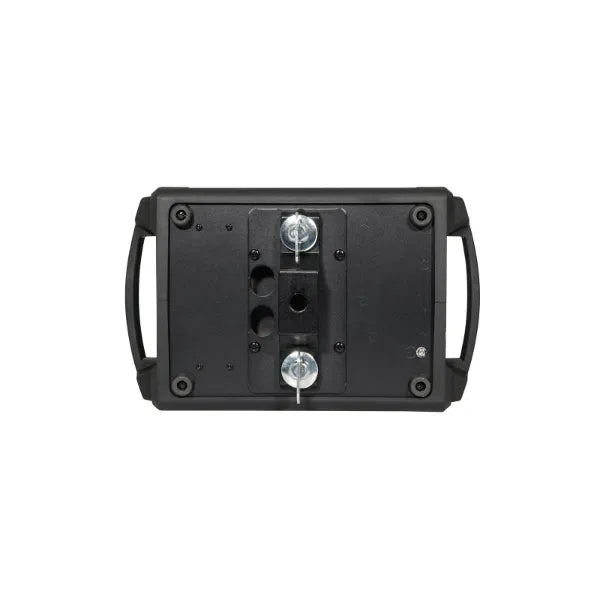

• Quick release omega clamps included
• USB port (firmware updates)
• Temperature controlled fan
