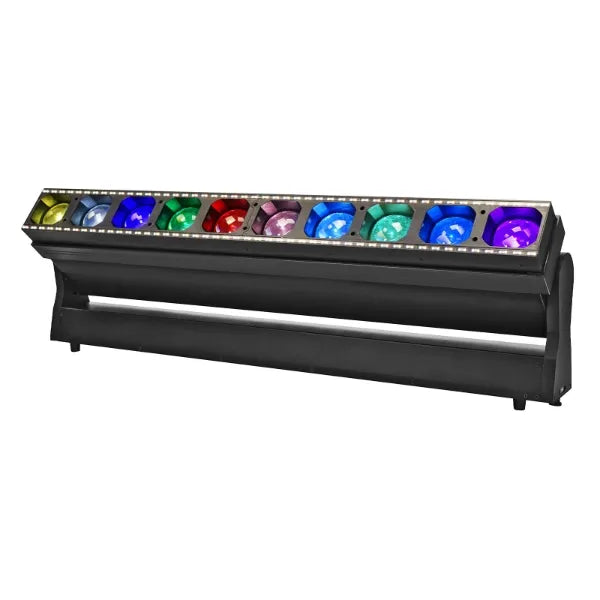

Meteor 1060 Zoom Batten

The Meteor 1060 Zoom is a high-output moving batten incorporating ten 60W RGBW LEDS with full pixel mapping capabilities along with 96 x 1W tri colour, 96 x 2W warm white and 96 x 2W cool white LEDs for added effects. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colours. Multiple operating modes create unique effects including beams, washes, and strobe. The fixture also offers pre-programmed macros and patterns and features a motorized zoom with a beam angle of 3ø to 41ø. There are two connection locations for the included omega clamps accept most hardware and a tool-less connection system allows units side-by-side connection. PowerTwist TR1, 5-Pin DMX and Ethernet inputs and outputs to allow for a problem-free, rental-ready connection.

• 2 year warranty
• 10 x 60W quad-colour LEDs (RGBW)
• 96 x 1W tri-colour SMD 5050 LEDs (RGB), 96 x 2W cool white SMD 5050 LEDs (CW) plus 96 x 2W warm white SMD 5050 LEDs (WW)
• Adjustable beam angle: 3ø- 41ø
• Lumens ? Source: 25,450
• Lumens ? Output: 23,500
• 3ø - 109,375 Lux @ 2m (full on), 41ø - 10,125 Lux @ 2m (full on)
• CRI: 78
• Refresh rate: 15 selectable presets between 900Hz-25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Control protocols: DMX, Art-net and sACN
• DMX channels: 17/27/99/108 or 168 selectable
• Manual control mode
• Built-in colour macros and patterns
• Colour temperature presets
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Tilt: 200ø
• 0 - 100% dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve
• Variable strobe
• Quick release omega clamps included
• RDM (Remote Device Management)
• 4 button menu with 1.8? TFT display
• Display battery backup for offline configuration
• PowerTwist TR1, 5-Pin XLR and Ethernet inputs/outputs
• Temperature controlled fan
