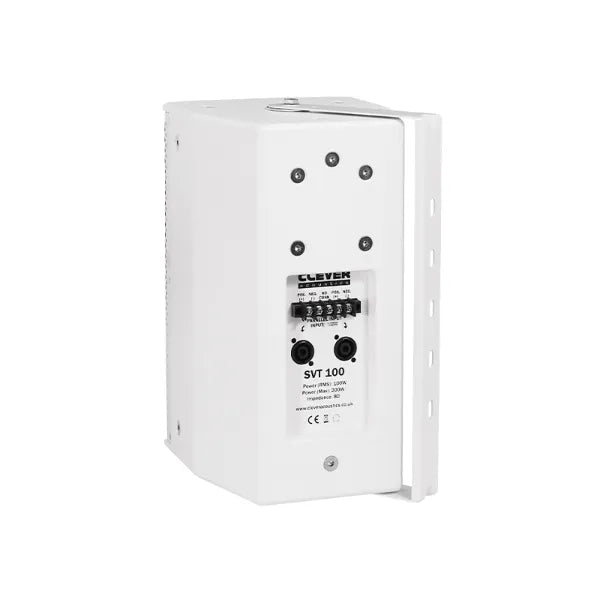

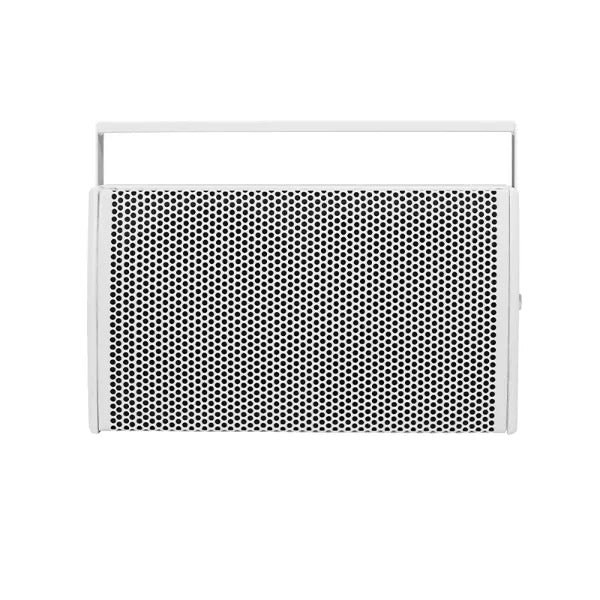

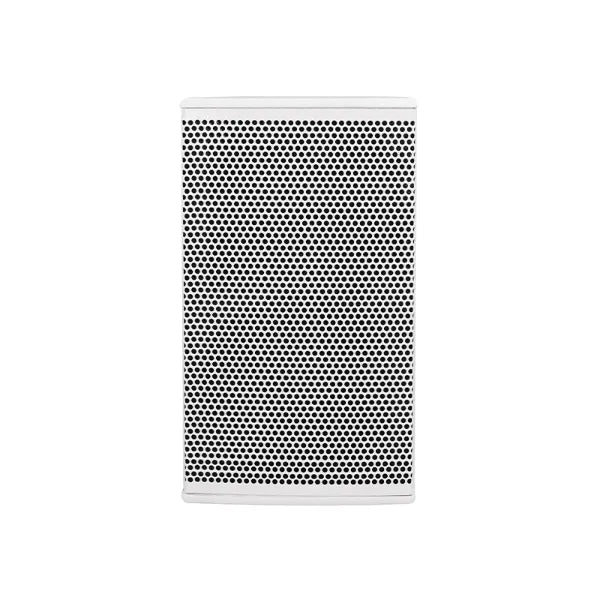

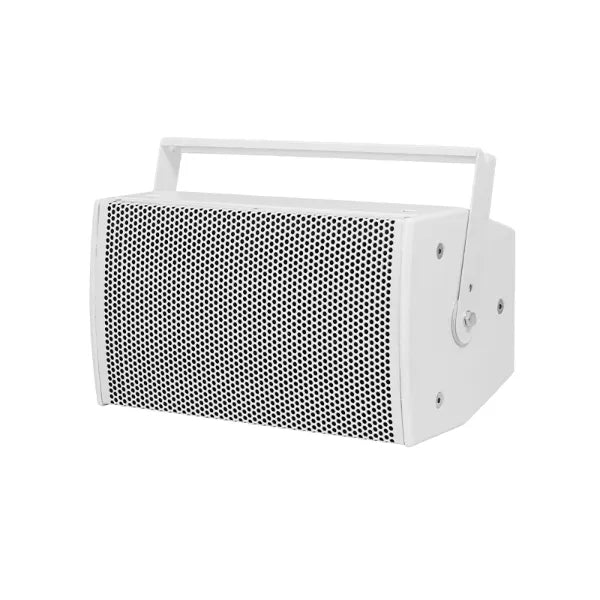

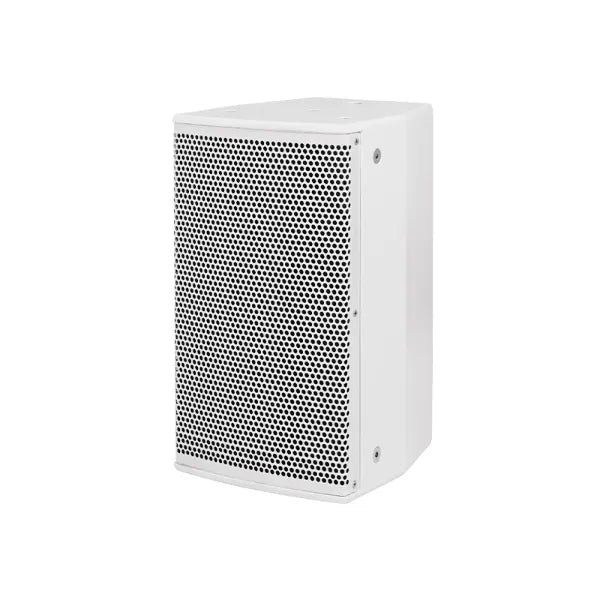

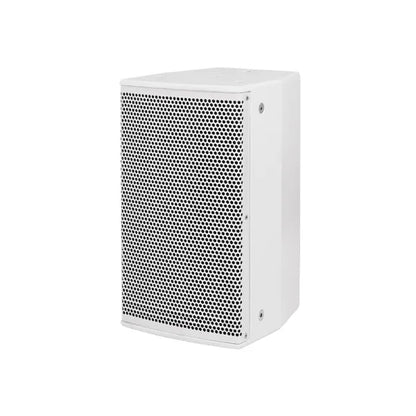

The SVT 100 is an excellent sound reinforcement or background music loudspeaker and can be oriented in a vertical or horizontal position. It has been designed for installation, and with the use of the included bracket it can be mounted on a wall or ceiling. Alternatively these speakers feature fly points and BRAC03/BRAC04 mounts. Also for ease of installation, the SVT 100 features both speakON and screw terminals all in a parallel configuration. The SVT 100 cabinets also feature a rotatable horn flare, which allows an installer to tailor the HF dispersion to vertical or horizontal cabinet installations.
3 year warranty
Continuous power (RMS): 100W
Peak power: 200W
Max. calculated SPL: 114dB
Sensitivity (1W/1m): 90dB
Frequency response: 75Hz-20kHz
Crossover frequency: 2.7kHz
Horizontal coverage: 90ø
Vertical coverage: 60ø
LF transducers: 6? / 150mm
HF transducers: 1? / 25mm
Nominal impedance: 8?

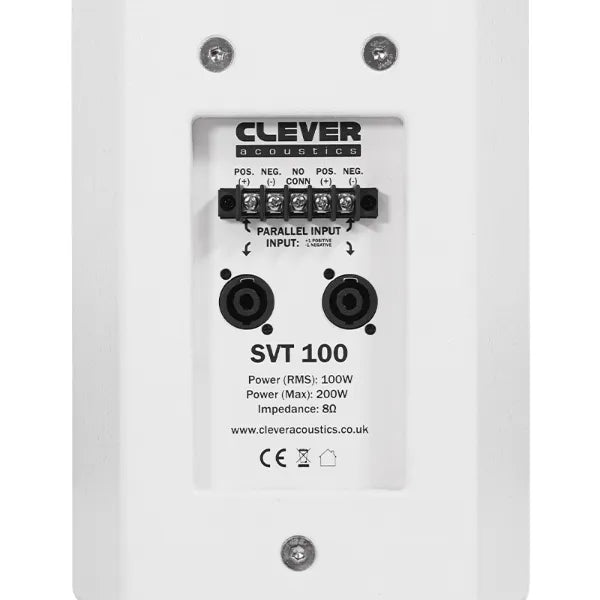

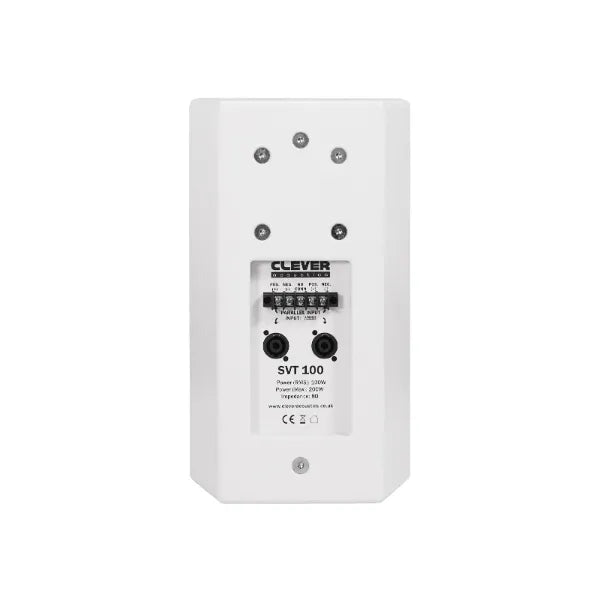

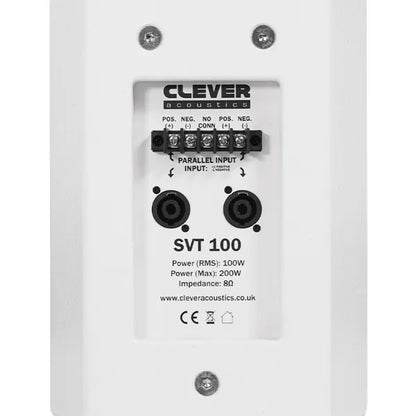

Connections: 2 x speakON connectors and barrier strip

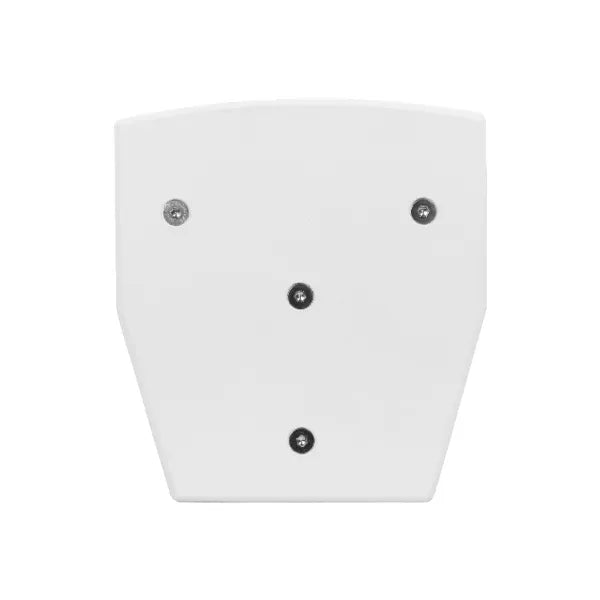

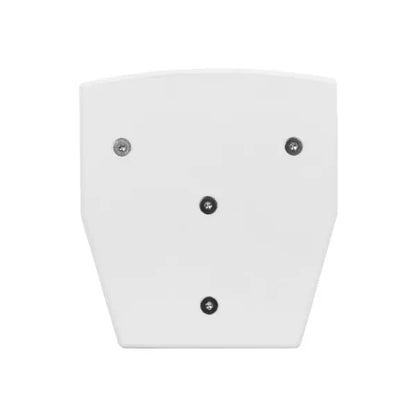

Mounting options: Includes bracket and fly points, and features pre-prepared mounting points on rear for BRAC03/BRAC04
