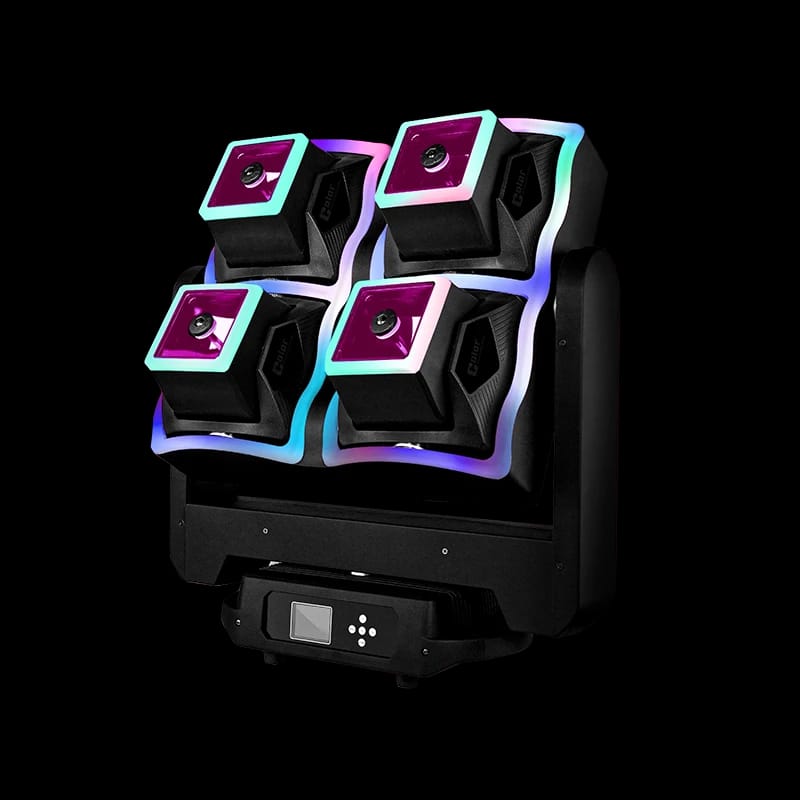

Crazycube 46

 Prepare to be captivated by the CRAZYCUBE 46, an unprecedented marvel in the world of stage lighting. It is a moving head light
that stands as a mark to innovation, offering a light that has never before graced the market.
 At its core, the CRAZYCUBE 46 is a beacon of creative exploration, thanks to its four individual mini moving heads. These heads
produce a narrow angle beam effect (3.5°), casting a spotlight on your imagination. What sets this fixture apart is the unique ability
to control each head individually for colors and PAN/TILT movement (76°), providing you with the ultimate canvas to craft your
lighting masterpiece.
 Experience a dynamic interplay of light and shadows with the CRAZYCUBE 46's continuous PAN/TILT movement. With the ability
to create sweeping arcs, dramatic cuts, or graceful rotations, this fixture infuses life and energy into any application environment.
 The heart of this extraordinary fixture lies in its 4*60W 4-IN-1 RGBW LED chips, heralding the zenith of lighting technology. These
advanced light sources produce a radiant spectrum of colors, enabling you to paint your surroundings with rich, vibrant hues. From
delicate pastels to intense, vivid tones, the CRAZYCUBE 46 opens up a world of possibilities.
 In summary, the CRAZYCUBE 46 is a groundbreaking moving head light that redefines the art of lighting. It offers an unprecedent
ed narrow angle beam effect, individual head control, continuous movement, and the brilliance of 60W 4-IN-1 RGBW LED chips.
Elevate your lighting designs to new heights with a fixture that is truly exceptional.
 The fixture is tuned with proper LED refresh rate for flicker free operation for TV and FILM. It’s a perfect option for large scale live
concerts, TV productions, road shows, clubs/bars, weddings, ballrooms, banquet halls, etc.

Light Source
 Source:
4*60W 4-IN-1 RGBW LEDs
 (4*30)*0.2W 3-IN-1 SMD RGB LEDs
 Flicker free operation for broadcast TV and
FILM
 LED driving frequency adjustable
 Life Span: 50000H
 The life span may vary depending on
several following factors but not limited to:
 Environmental Conditions, Power/Voltage,
Usage Patterns (On-Off Cycling), Control,
and Dimming, etc)
 Optics
 High efficiency lens
 3.5°Projection angle
 Sharp and clear beam effect

 Movement
 The complete head:
 PAN: 2 modes
 1. 360°Continuous movement
 2. 540°(8/16 bit)
 TILT: 2 modes
 1. 360°Continuous movement
 2. 270°(8/16 bit)
 Each mini head:
 PAN movement: 76° (8/16 bit)
 TILT movement: 76° (8/16 bit)
 Fast, quiet, smooth and precise 2-phase
motors
 Smooth, fast and precise resolution for
movement with low noise operation
 Scan position memory, auto reposition
after unexpected movement

 Colors
 Sophisticated 4 colors RGBW mixed
 Linear CTO 2500-8000K
 Preset static patterns
 Preset dynamic patterns with variable
speed
 Preset dynamic color macro with variable
speed

 Strip Effect
 Brilliant and magic trip effect with different
built-in macros
 (variable speed control)
 Strobe Effect
 1-25Hz shutter/strobe
effect with variable speed
 Preset pulse strobe effect
with variable speed
 Random strobe effect with variable speed
 Dimming System
 0-100% Smooth linear LED dimming
 Control System
 15/19 DMX channels USITT DMX-512
 DMX512, master-slave, sound activated or
auto operation
 DMX recorder and edit function integrated
 RDM available
 (Remote Device Management)
 Shielded input signal protection for stable
signal without interference
 3-Pin XLR connectors IN/OUT
 Display System
 1.44" TFT LCD display
 English/Chinese menu
 5 Control buttons
 180°Reversible for LCD display
 Display auto OFF
 Cooling System
 Advanced self-adjusting fan cooling system
integrated aluminum
 Constant temperature readout and
management function
 Over temperature protection management
 Power Supply
 Electronic supply with active PFC
 AC100-240V 50/60Hz
 PowerCON IN/OUT with fuse
 340W Power consumption

 Housing
 High tension molded fire proof housing
with PA6+fibre
 Skeleton made of aluminum and steel
metal plates
 Exterior finish: Black

 Installation
 2*1/4 turn fastening Omega Clamps
 1*Safety attachment point
 Operating Condition
 Operating positions:
all (device on floor or fixed to a support)-25℃ to 45℃ ambient temperature
 IP20 protection rating
 Compliance
 CE
 2014/35/EU - Safety of electrical
equipment supplied at low voltage (LVD)
 2014/30/EU -
Electromagnetic Compatibility (EMC)
 2011/65/EU - Restriction of the use of
certain hazardous substances (RoHS)

 Weight
 N.W.: 14.2kg
 G.W.: 15.7kg

 Dimensions
 Product Dimensions:
224(D)*224(W)*262.5(H)mm
 Packing Dimensions:
200(D)*1300(W)*390(H)mm
